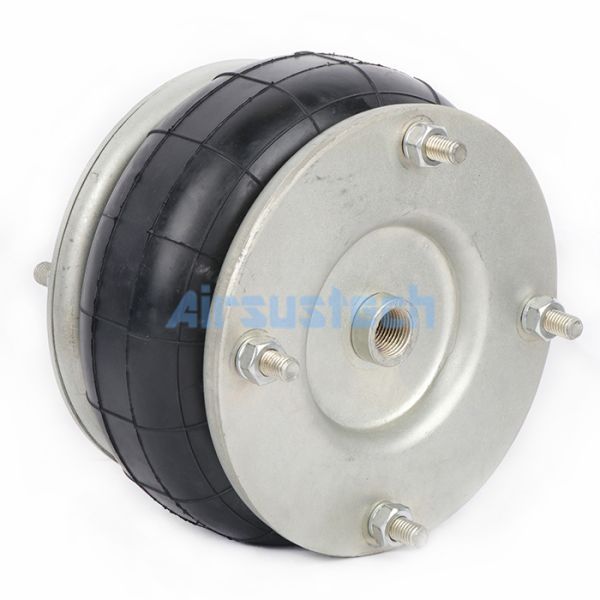

73MM Stroke Suspension Air Spring Norgren M/31081 Single Acting Air Bellow Actuator
OEM Cross References
| Norgren Part Number: M/31081 Norgren Part Number: M31081 Norgren Part Number: M 31081 |
| Firestone Part Number: W01-R58-4054 Firestone Part Number: W01R584054 Firestone Part Number: W01 R58 4054 |
| Dunlop Pneuride Part Number: 8×1 Dunlop Pneuride Part Number: 8'×1 Dunlop Pneuride Part Number: 8''×1
Dunlop Springride Part Number: SP1537 Dunlop Springride Part Number: SP 1537 Dunlop Springride Part Number: SP 15 37 |
| Contitech Part Number: FS 138-8 DS Contitech Part Number: FS 1388 DS Contitech Part Number: FS 138 8 DS |
| Parker Part Number: 9109014 |
Product Features
| Cover Plate |
| Top Cover Plate Diameter | 184 mm |
| Screw Center Distance of Top Cover Plate | 156 mm |
| Bottom Cover Plate Diameter | 184 mm |
| Screw Center Distance of Bottom Cover Plate | 156 mm |
| Nut/Blind Nuts |
| Top Cover Plate Screw(Nut) Tooth | 4×M10 |
| Bottom Cover Plate Screw(Nut) Tooth | 4×M10 |
| Gas Hole/Air Inlet/Air Fitting |
| Air Hole | 1/2BSP |
| Rubber Bellow |
| Rubber Bellow Max. Diameter | 230 mm |
| Minimum Height | 47 mm |
| Maximum Height | 120 mm |
Storage Precautions of AIRSUSTECH Air Bellows
1. Spare parts of air springs should be stored in dark places without ventilation as far as possible, avoiding direct sunlight
2. Avoid oil and chemicals on the air springs, otherwise, after long-term storage, the performance of the rubber will be degraded and the service life will be reduced
3. Air springs are best stored in a free state without any external force
4. Do not store in an environment with a temperature exceeding 50 degrees Celsius
What Are The Advantages of Our Shock Absorbers?
1. Increase driving comfort
Effectively eliminate abnormal sound,noise in the driving process,jitter,make driving more comfortable.
2. Lower fuel consumption and longer life
Reduce fuel consumption,prolong the life of car related chassis parts,reduce the cost of car maintenance.
3. High stability
In the sharp turn,winding road,pothole road,automatic adjutment of the body constant height,to ensure comfort,maintain stability.
Other Kinds of Air Shock Suspensions
| PM/31021 | PM/31022 | PM/31023 | PM/31041 |
| PM/31042 | PM/31043 | PM/31061 | PM/31062 |
| PM/31063 | PM/31082 | PM/31091 | PM/31092 |
| PM/31121 | PM/31122 | PM31123 | |
The Real Photos
